Λεπτομέρειες

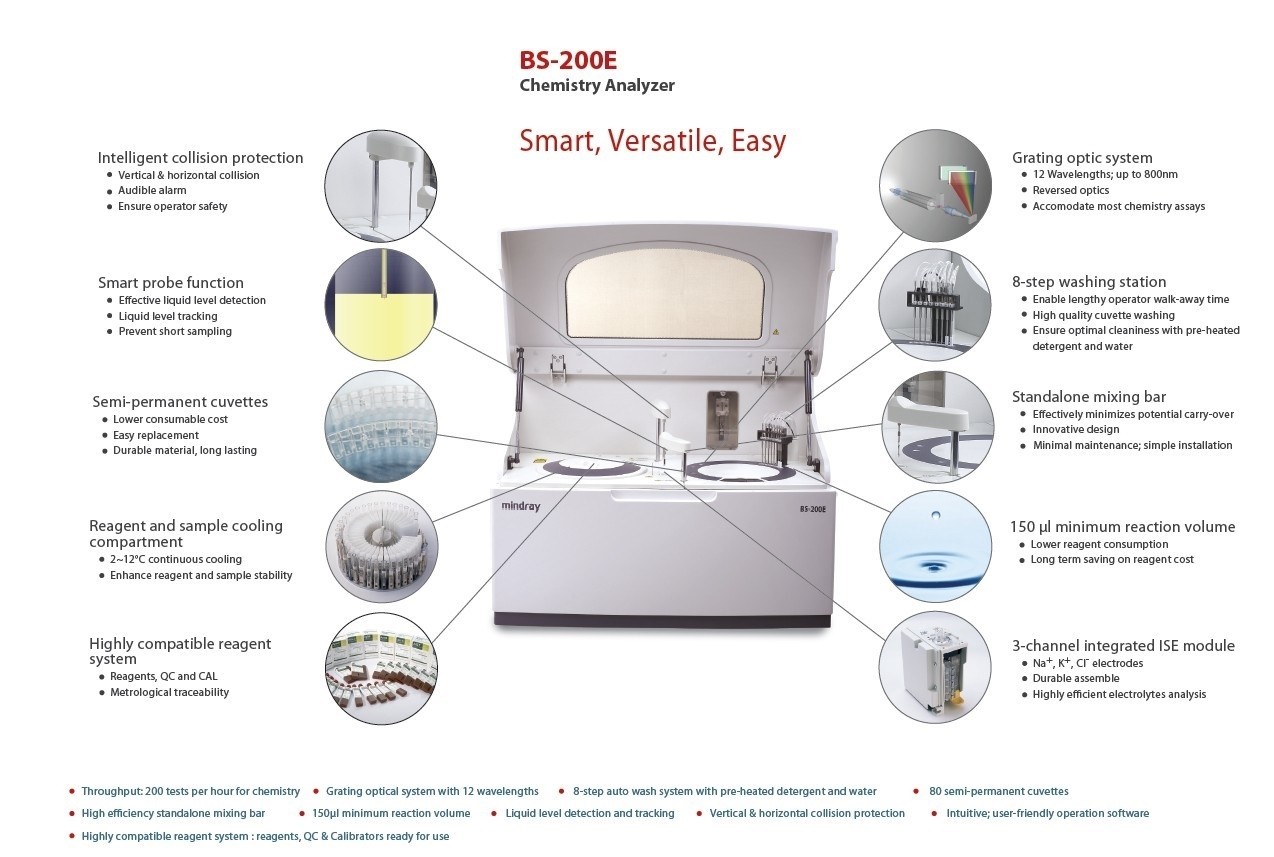

. Discrete, random access, fully automated, bench-top
. Constant 200 tests per hour, up to 330 tests per hour with ISE
. Auto washing system with pre-warmed detergent and water
. Grating optical system
. 150µl minimum reaction volume
. Independent mixing bar
. Reusable reaction cuvettes
. Bi-directional connection to LIS host
Chemistry Reagents
Hepatic
Alanine Aminotransferase (ALT) Aspartate Aminotransferase (AST) Alkaline Phosphatase (ALP) γ-GlutamylTransferase (γ-GT) Direct Bilirubin (D-Bil) DSA Method Direct Bilirubin (D-Bil)VOX Method Total Bilirubin (T-Bil) DSA Method Total Bilirubin (T-Bil)VOX Method Total Protein (TP) Albumin (ALB) Total Bile Acids (TBA) Prealbumin (PA) Adenosine deaminase (ADA) * α-L-fucosidase (AFU) * 5'-nucleotidase (5'-NT) *
Renal Urea
(UREA) Creatinine (CREA) Modified JafféMethod Creatinine (CREA)Sarcosine OxidaseMethod Uric Acid (UA) Microalbumin* β2-Microglobulin (β2-MG) * Cystatin C (CysC) *
Cardiac
Creatine Kinase (CK) Creatine Kinase-MB (CK-MB) Lactate Dehydrogenase (LDH) α-Hydroxybutyrate Dehydrogenase(α-HBDH) Myoglobin*
Ferrum Iron (Fe) Ferritin (FER) * Transferrin (TRF) * Total iron binding capacity / unsaturated iron Binding capacity (TIBC/UIBC) *
Lipids
Total Cholesterol (TC) Triglycerides (TG) HDL-Cholesterol (HDL-C) LDL-Cholesterol (LDL-C) Apolipoprotein A1 (ApoA1) Apolipoprotein B (ApoB) Lipoportein(a) [LP(a)]
Pancreatitis
α-Amylase (α-AMY) Lipase (LIP)
Diabetes
Glucose (Glu) GOD-POD Method Glucose (Glu) HK Meth Fructosamine (FUN)
Inorganic ions
Calcium (Ca) Magnesium (Mg) Phosphate Inorganic (P)
Rheumatism
High sensitivity C-reactive protein (hs-CRP) * Rheumatoid Factor (RF) Antibodies Against Streptolysin O (ASO)
Immune
Immunoglobulin A (IgA) Immunoglobulin G (IgG) Immunoglobulin M (IgM) Immunoglobulin E (IgE) * Complement C3 (C3) Complement C4 (C4) C-Reactive Protein (CRP)
Others
Glucose-6-phosphate dehydrogenase (G6PD) * D-dimer* Angiotensin converting enzyme (ACE) * Retinol binding protein (RBP) * D3-hydroxybutyric acid (D3-HB) *
* Coming soon
Επιπρόσθετες Πληροφορίες
| Tests per box | 1 |
|---|---|
| Strips | Μη Διαθέσιμο |
| Customer Groups Price | Όχι |
| Intended use | End-point, fixed-time, kinetic, optional ISE Single/dual reagent chemistries, monochromatic/bichromatic linear/non-linear multipoint calibration |
| Advantages | Technical Specifications: System Function: Automatic, Discrete, Random Access STAT sample priority Throughput: Constant 200 tests/hour (without ISE), up to 330 tests/hour with ISE Principles: Absorbance photometry, Turbidimetry, Ion Selective Electrode technology Methodology: End-point, Fixed-time, Kinetic, optional ISE Single/Dual reagent chemistries, monochromatic/bichromatic Linear/non-linear multi-point calibration Programming: Open system with user defined profiles and chemistry calculation System pack reagents ready to use
Reagent/Sample Handling: Reagent/Sample tray: 40 reagent positions, 40 sample positions in cooling compartment (2~12˚C) Reagent volume: R1: 10~350μl, step by 1 μl R2: 10~200μl, step by 1 μl Sample volume: 2~45μl, step by 0.1 μl Reagent/Sample probe: Liquid level detection and tracking, vertical & horizontal collision protection and inventory checking Probe cleaning: Automatic washing of interior and exterior Carry-over < 0.1% Automatic sample dilution: Pre-dilution and post-dilution Dilution ratio up to 1: 200
ISE Module (optional):Measure parameter: K+, Na+, Cl− Reaction System: Reaction rotor: Rotating tray, containing 80 cuvettes Cuvette: Reusable, optical length 5mm Reaction volume: 150~500μl Reaction temperature: 37˚C Temperature fluctuation: ±0.1˚C
Mixing System: Standalone mixing bar
Cuvette Washing: 8-step washing station with pre-heated detergent and water
Control and Calibration: Calibration mode: Linear (one-point, two-point and multi-point), Logit-Log 4P, Logit-Log 5P, Spline, Exponential, Polynomial, Parabola Control software: Westgard multi-rule, Cumulative sum check, Twin plot, L-J Chart Operation Unit: Operation system: Windows® XP Professional/Home SP2 or above Windows® 7 Interface: RS-232
Working Conditions: Power Supply: AC 200~240V, 50/60Hz, ≤1500VA or AC 100~130V, 50/60Hz, ≤1500VA Temperature: 15-30˚C for operation Humidity: 35-85% RH Dimension: 860mm (W) x700mm (D) x625mm (H) Weight: 130 Kg |
| Reading time | Όχι |
